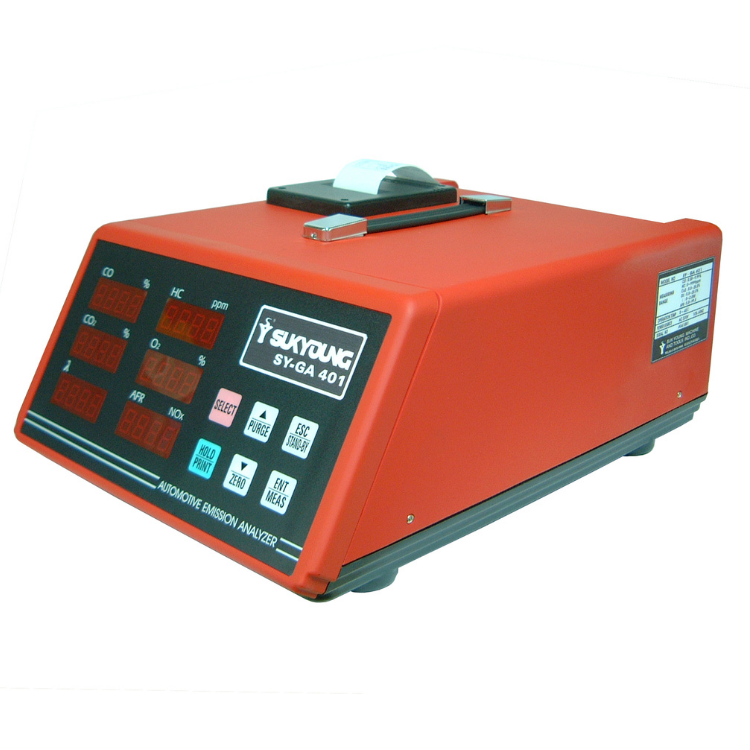

FOUR GAS ANALAYZER SY-GA401

SPECIFICATION :

Measuring Item: CO, HC, CO2, O2, (air surplus rate), AFR, NOX (optional)
Measuring Method: CO, HC, CO2 : NDIR / O2
NOX: Electrochemical Cell

Measuring Range:
CO 0.0~9.99%
0.01%
4digit7segment LED
0.0~20.0%
Co2 0.1%
4digit7segment LED
0~2.000
0.001
4digit7segment LED
HC 0~9999ppm
1ppm
4digit7segment LED
0.00~25.00%
O2 0.01%
4digit7segment LED
0.0~99.0
AFR 0.1
4digit7segment LED
Repeatability: Less than /-2% FS
Response Time: Within 10 seconds (more than 90%)
Connection to PC: by RS 232 port
